PRODUCTS LINE-UP DEVICE BUILT IN TYPE


Hot air heater
PHS100N

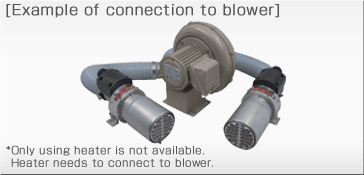

Example of connection to blower
〔FEATURE〕
■ Limit of usable max.temp.650℃
■ Small and compact design
■ Possible of continuity operation
■ Setting the absorbed and the blow out position straight, uneven for heating air.
Type
Voltage
Power consumption
Hot air temp.
Min. requirements Air flow
Min. requirements Air flow
Temperature control
PHS100N-2
200-230V
(Three phases)
6000-7900W
650℃
(Max)
560L(Please prepare blower)
2.6kg
Non
*Ｉｆ you need temperature regulate function, Please set the regulation unit goods on the
market.(If there is indistinctness, Please inquire us.)
7500-9900W
700L(Please prepare blower)
10000-13200W
930L(Please prepare blower)
PHS100N-4
400V
(Three phases)
5700W
650℃
(Max)
400L(Please prepare blower)
8100W
570L(Please prepare blower)
10950W
770L(Please prepare blower)
Leaflet download   Drawing installation dimension in mm (DXF file) General leaflet
Before to use, please download the file.
